医用级胶粘剂

好乐胶粘剂专为解决医疗器械生产中的各类特殊工艺难题。该系列产品不仅符合各项医疗卫生规范，还适配高精度生产工艺，可实现永久性粘接，同时耐受多种灭菌处理方式。我们可供应多款生物相容性、不含 CMR物质和 TPO 的产品，所有产品均通过了 USP CLASS VI 和/或 ISO 10993 标准的认证。

申请咨询

下载

医用级胶粘剂宣传册

医用级胶粘剂适用于各类医疗器械

好乐（曾用名Panacol）的医用级胶粘剂可粘合注射器、透析过滤器、血袋和管道连接件等医疗产品。这些医疗产品通常由一系列合成材料制成，包括 PEEK、PE 和 PP 等难以粘接的塑料。而 PVC 和 ABS 等普通塑料则非常适合粘接。

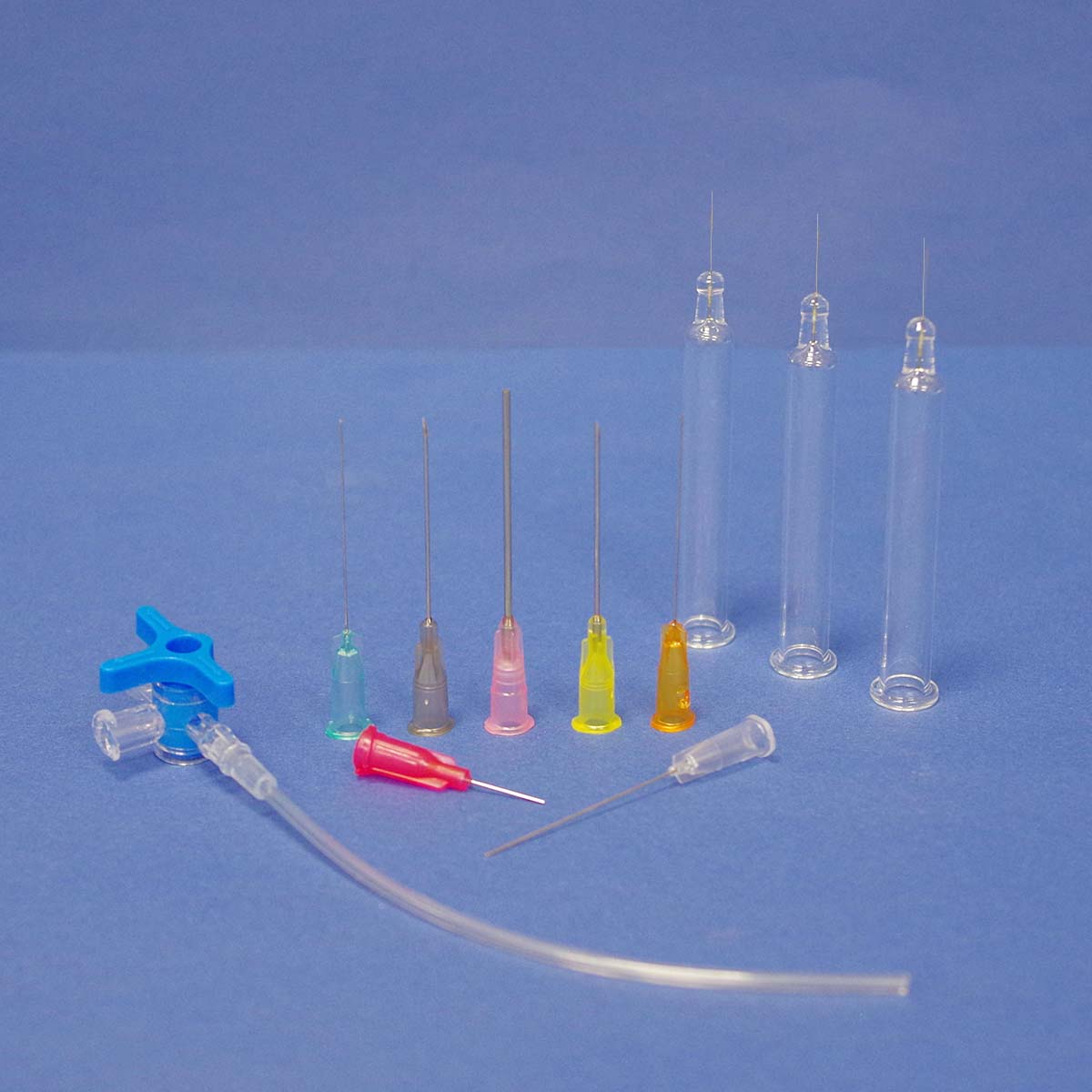

一次性医疗产品通常需要大量生产。所选胶粘剂除需具备可靠机械粘接强度外，快速固化性能对实现高产能生产也至关重要。对于透明和紫外线渗透性材料，可使用紫外线固化医用级粘合剂。对于不透紫外线的基材，我们推荐搭配LED 固化方案。我们还提供荧光型医用级胶粘剂，便于产品外观检测。

对于可重复使用的医疗产品来说，耐用性和承受频繁消毒的能力起着至关重要的作用。固化后的丙烯酸酯胶粘剂具有很强的耐高压灭菌、伽马射线辐射和环氧乙烷灭菌的能力。这些方法对好乐医用级胶粘剂没有明显的负面影响。经测试，电子束灭菌甚至可以提高Vitralit® 系列中某些医用胶的粘接强度，原理是该系列胶水聚合度得到提升。

UV 胶完美适配各类医用一次性耗材粘接

医用级胶粘剂产品总览

下表汇总了通过 ISO 10993 、USP VI 级单项或双重认证的医用级胶粘剂、此类产品均适用于医疗领域应用：

Adhesive	Application Areas	Viscosity [mPas]	Base	Curing	Special Properties
Cyanolit® 203 TX	Bonding tube sets, bridging large gaps, suitable for porous materials	1,300-1,800 (Brookfield LVT, 25 °C, Sp. 3/60 rpm)	cyanoacrylate	moisture, room temperature	Biocompatible: certified to USP Class VI standards Resistant to moisture Shear-thinning
Cyanolit® 241 F	Plastic bonding, metal bonding	30-50	cyanoacrylate	moisture, room temperature	Instant adhesive, plastic bonder perfect choice for mirror bonding biocompatible according to USP Class VI
Cyanolit® 290 WR	Bonding of dissimilar substrates High adhesion to plastic and metal	400 (LVT, 25 °C, Sp. 2/60 rpm)	cyanoacrylate	atmospheric moisture / room temperature	Instant adhesive, fast-curing, water-resistant, chemical-resistant, moisture-resistant, certified to ISO 10993-5
Cyanolit® 732 F	Bonding coloured plastics, delicate bonds	230-350 (LVT, 25 °C, Sp. 2/60 rpm)	cyanoacrylate	moisture, room temperature	Film forming Suitable for bonding porous materials Biocompatible: certified to USP Class VI standards
Elecolit® 323	Bonding of EP catheters	paste-like	2 component epoxy	thermal	electrically conductive (ICA) thermally conductive ISO 10993-5/-12 certified
Structalit® 5893	needle bonding plastic bonding	6,000-10,000 (Rheometer, 25°C, 10s^-1)	epoxy	thermal	Black color excellent flow properties filling material for frame&fill applications high resistance to heat and chemicals certified to ISO 10993-5 standards

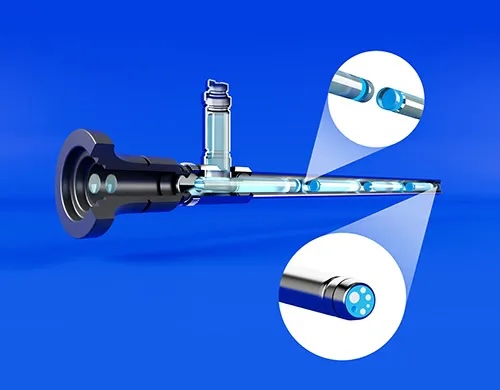

Structalit® 701	bonding surgical instruments endoscopes light guides	3,000-5,000	2-part epoxy	thermal	Transparent in thin layers long potlife fast curing certified to USP Class VI and ISO 10993-5 standards
Structalit® 8801	Attaching components on PCBs, Encapsulation of electronic components, Encapsulation of plastic parts, Potting material	30,000-45,000 (LVT, 25°C, Sp. 4/6 rpm)	epoxy	thermal	Epoxy-based resin resistant to high temperatures and oil/grease perfect choice for ring applications
Vitralit® 1605	optical cement lens bonding cement glass bonding medical device bonding	200-400 (LVT, 25°C, Sp. 2/30 rpm)	epoxy	UV secondary heat cure	low shrinkage low heat expansion very high tg excellent chemical resistance certified to ISO 10993-5 standards
Vitralit® 1605 MV	optical cement lens bonding cement glass bonding bonding of medical devices	3,500-7,000 (Rheometer, 25 °C, 10s^-1)	epoxy	UV secondary heat cure	transparent, low shrinkage low heat expansion very high tg excellent chemical resistance certified to ISO 10993-5 standards
Vitralit® 1655	Medical devices bonding Flexible potting Optics	150-300 (Brookfield LVT, 25 °C, Sp. 2/30 rpm)	epoxy	UV secondary heat cure	flexible certified to USP Class VI and ISO 10993-5 standards resistant to all common sterilization methods
Vitralit® 1702	Hose connections, blood filters	10-100	acrylate	UV	Transparent capillary flow biocompatible: certified to USP Class VI standards
Vitralit® 1703	Hose connections, blood filters	85,000-130,000 (LVT, 25 °C, Sp. 4/3 rpm)	acrylate	UV	Fluorescing Shear thinning, shape retaining Certified according to USP Class VI Resistant to sterilization
Vitralit® 4731	Bonding of flexible components; Attaching components on PCBs	900-1,500 (LVT, 25°C, Sp. 3/30 rpm)	acrylate	UV VIS	Dry surface after curing, biocompatible: certified to USP Class VI and ISO 10993-5 standards
Vitralit® 6108	needle bonding bonding glass cannulas endoscope assembly	500 - 800 (Brookfield LVT, 25 °C, Sp. 3/30 rpm)	acrylate	UV VIS secondary heat cure	non-yellowing excellent flow properties certified to USP Class VI and ISO 10933-5 standards resistant to sterilization
Vitralit® 6108 T	needle bonding bonding glass apparatus	3,000-6,000 (Rheometer, 25 °C, 10s^-1)	acrylate	UV VIS secondary heat cure	non-yellowing excellent gap-filling certified to USP Class VI standards shear thinning
Vitralit® 7090 VHS	Bonding catheters, needle bonding	40-100	acrylate	UV VIS	Dry surface, very high adhesion to plastics, biocompatible: certified to USP Class VI standards
Vitralit® 7989	Plastic bonding, bonding containers	3,000-5,000	acrylate	UV	Excellent adhesion to plastics, especially to PC and PMMA; biocompatible: certified to USP Class VI standards
Vitralit® E-4731	Bonding hose fittings, bonding housings	700-1,400 (LVT, 25°C, Sp. 3/30 rpm)	acrylate	UV VIS	Flexible, excellent adhesion to glass and plastics, dry surface, biocompatible: certified to USP Class VI and ISO 10993-5 standards, CMR-free
Vitralit® E-4731 F	Bonding of components on PCB’s  Flexible Glass bonding Display potting Plastic bonding Laminating of foils	900-1,200 (Rheometer, 25 °C, 10s^-1)	acrylate	UV/VIS	Transparent, fluorescing blue Flexible, dry surface CMR-free, certified according to ISO 10993-5
Vitralit® E-5140	Sealing electrical assemblies, breathing masks	2,100 (Rheometer, 25°C)	acrylate	UV VIS	Flexible, IBOA-free, CMR-free Biocompatible: certified to ISO 10993-5 standards Well suited for bonding plastics with low UV translucence and permeable to visible light
Vitralit® E-7041	Needle bonding, Bonding enclosures, Bonding of plastics Bonding Medical Devices	70 (Rheometer, 25°C)	acrylate	UV VIS	Excellent adhesion to glass, plastics and metals; biocompatible: certified to ISO 10993-5 standards; Capillary flow, resistant to sterilization; CMR-free, IBOA-free
Vitralit® E-7041 F	Needle bonding, Bonding enclosures, Bonding of plastics, Bonding medical devices	70 (Rheometer, 25°C)	acrylate	UV VIS	Fluorescing, capillary flow for quick filling and tight bond gaps, Restistant to sterilization, biocompatible: certified to USP Class VI and ISO 10993-5 standards CMR-free, IBOA-free
Vitralit® E-7041 T	Needle bonding, Bonding dialysis filters, Bonding of plastics Bonding medical devices	2,200 (Rheometer, 25°C, 10s^-1)	acrylate	UV VIS	High viscosity/stable, CMR-free, IBOA-free excellent adhesion to glass, plastics and metals; biocompatible: certified to USP Class VI and ISO 10993/-4/-5 standards
Vitralit® E-7041 T F	Medical Devices	2,100 (Rheometer, 25°C, 10 s^-1)	acrylate	UV/VIS	Biocompatible: certified to ISO 10993-5 standards CMR-free, IBOA-free resistant to sterilization
Vitralit® E-7311	Medical Devices	80 (Kinexus Rheometer, 25°C)	Acrylat	UV/VIS	CMR-free certified according to ISO 10993-5
Vitralit® E-7311 FO	Medical Devices	85 (Rheometer, 25°C)	acrylate	UV/VIS	CMR-free, fluorescing orange biocompatible according to ISO 10993-5
Vitralit® E-7311 FO T	Medical Devices	2,200 (Rheometer, 25 °C, 10s^-1)	Acrylate	UV/VIS	Fluorescing orange CMR-free, biocompatible according to 10993-5

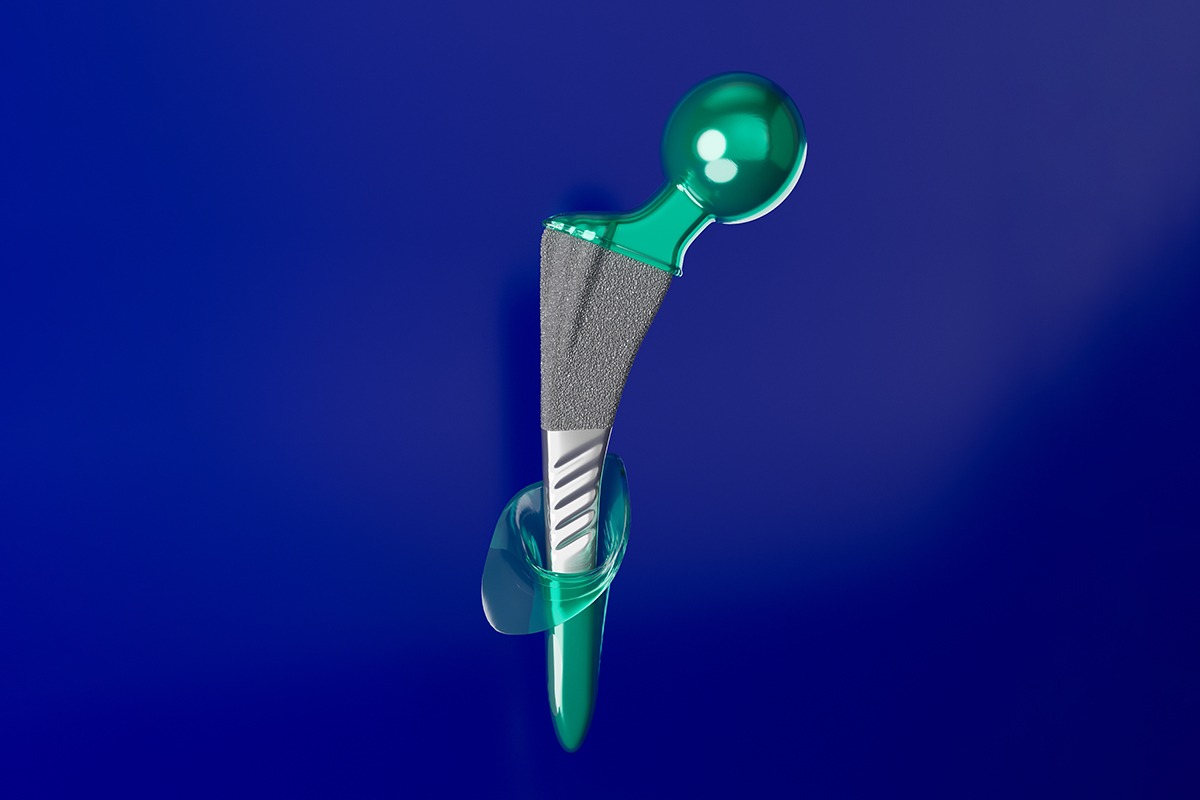

Vitralit® MASK E-20102-G	Aerospace Medical: Orthopedic implants Masking Protective coating of highly polished surfaces	8,000-15,000 (Rheometer, 25 °C, 10s^-1)	acrylate	UV VIS	Green color, shear thinning, elastic Removable with hot water at 80°C CMR-free, certified according to ISO 10993-5
Vitralit® MASK E-20102-G Gel	Masking/Protective Coating Medical Orthopedic Implants Masking for Aerospace	20,000 – 24,000 (Rheometer, 25 °C, 10s^-1)	acrylate	UV/VIS	Elastic, shear thinning, solvent-free, green color Good adhesion to steel, aluminium, titanium, nickel and cobalt Removable with hot water at 80°C
Vitralit® UV E-4050	Needle bonding Plastic bonding	170 (Rheometer, 25°C)	acrylate	UV VIS	Certified to ISO 10993-5 standards, CMR-free, impact resistant, very fast curing very high adhesion to plastics
Vitralit® UV E-7030 LV	Plastic Bonding Medical Devices	720 (Rheometer, 25°C)	acrylate	UV/VIS	IBOA-free, CMR-free Biocompatible according to ISO 10993-5

*紫外线 = 320 – 390 纳米可见光 = 405 纳米

各类粘接应用医疗器械行业

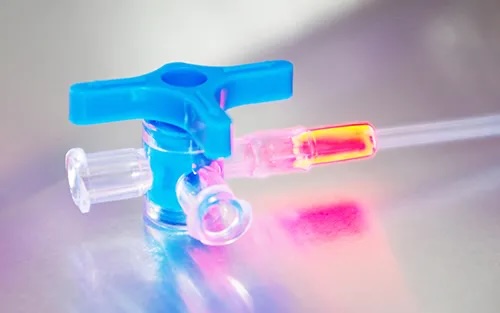

Bonding Connecting Elements

Connection elements, such as infusion lines or tubes are usually made from plastics and are bonded

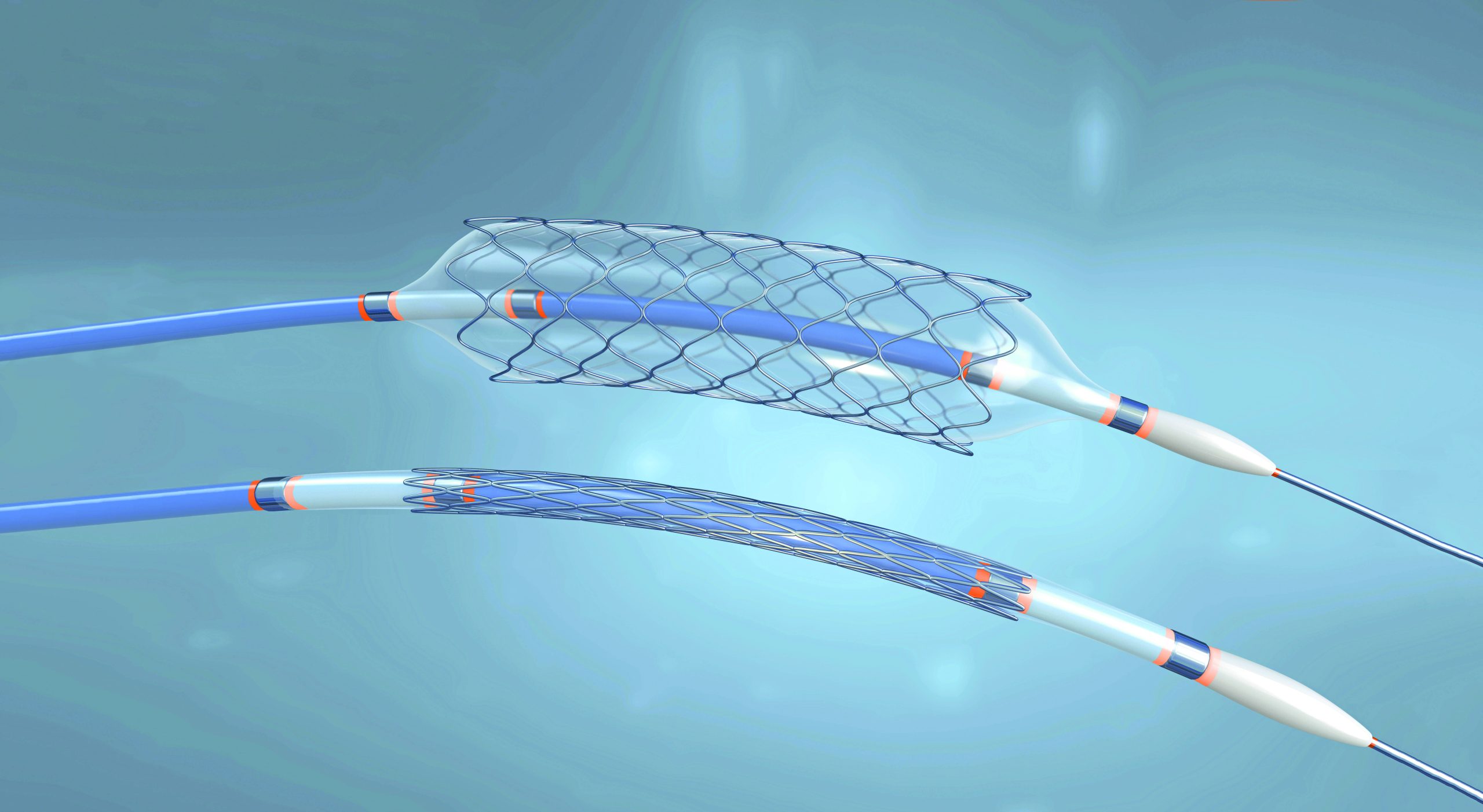

Catheter Assembly

Medical grade adhesives from Panacal are the perfect choice to bond catheters and guidewires in medical devices.

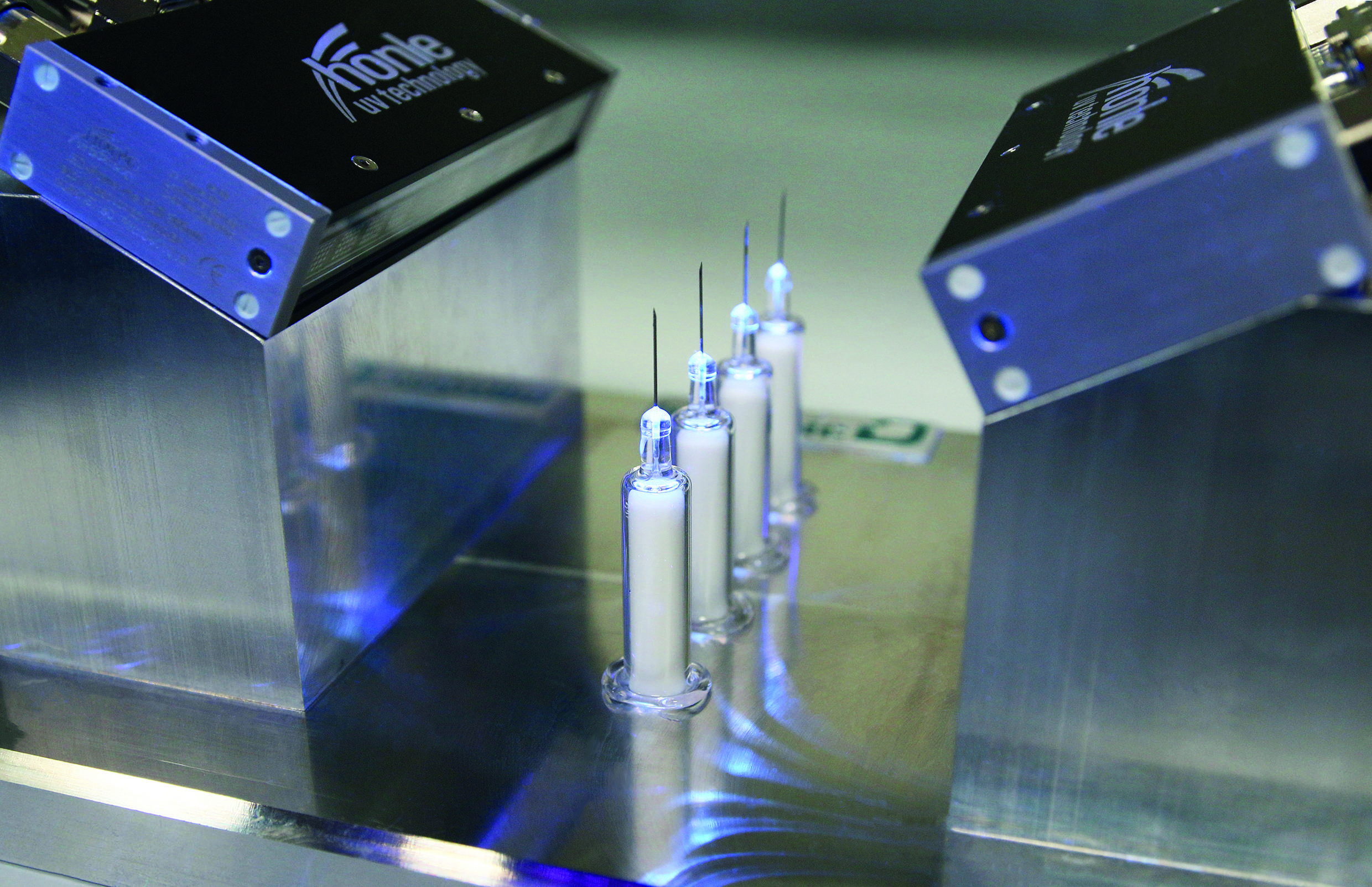

Needle Bonding

A main field of application for adhesives in medical systems is needle bonding and syringe assembly - the bonding of stainless steel needles or cannulas into glass or plastic syringes.
